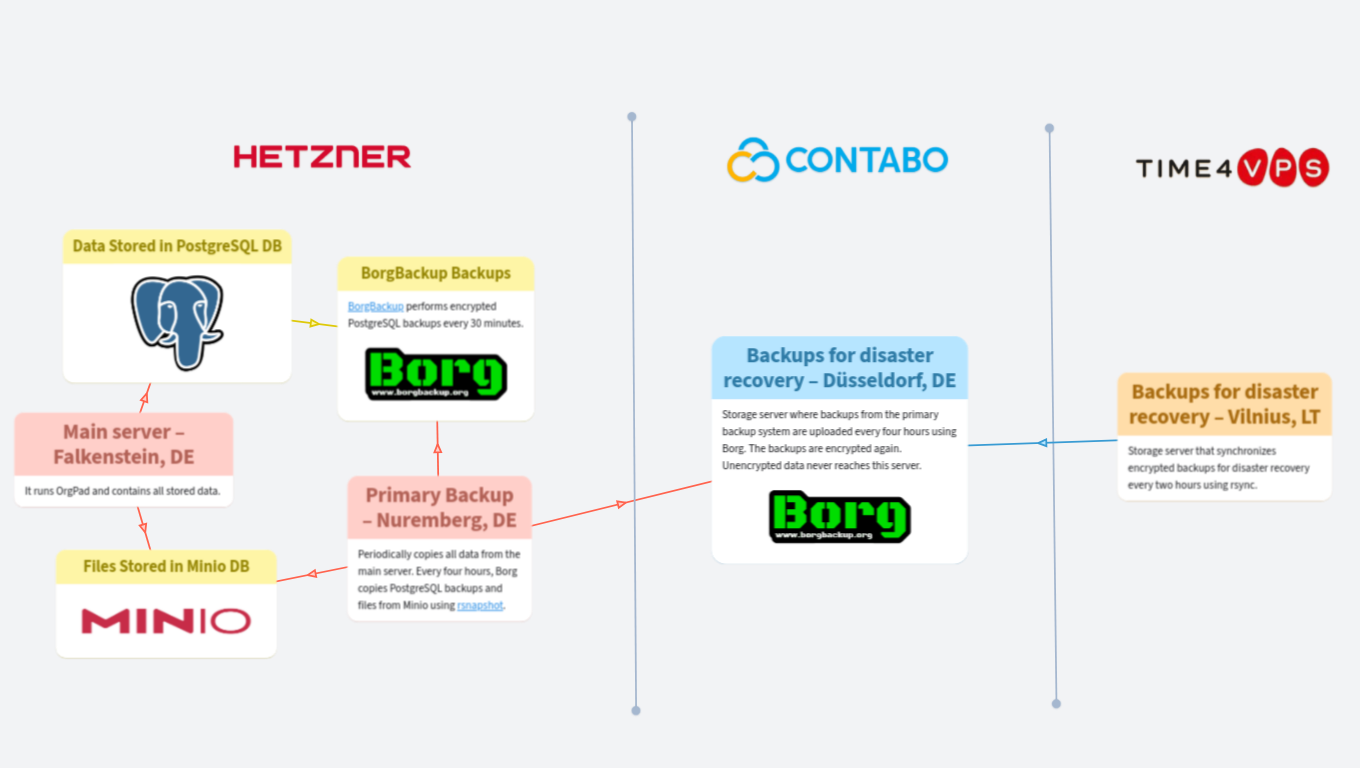

OrgPad backups

Created by OrgPad Info

Data Stored in PostgreSQL DB

BorgBackup Backups

BorgBackup performs encrypted PostgreSQL backups every 30 minutes.

Main server – Falkenstein, DE

It runs OrgPad and contains all stored data.

Backups for disaster recovery – Düsseldorf, DE

Storage server where backups from the primary backup system are uploaded every four hours using Borg. The backups are encrypted again. Unencrypted data never reaches this server.

Backups for disaster recovery – Vilnius, LT

Storage server that synchronizes encrypted backups for disaster recovery every two hours using rsync.

Primary Backup – Nuremberg, DE

Periodically copies all data from the main server. Every four hours, Borg copies PostgreSQL backups and files from Minio using rsnapshot.

Files Stored in Minio DB
